Description

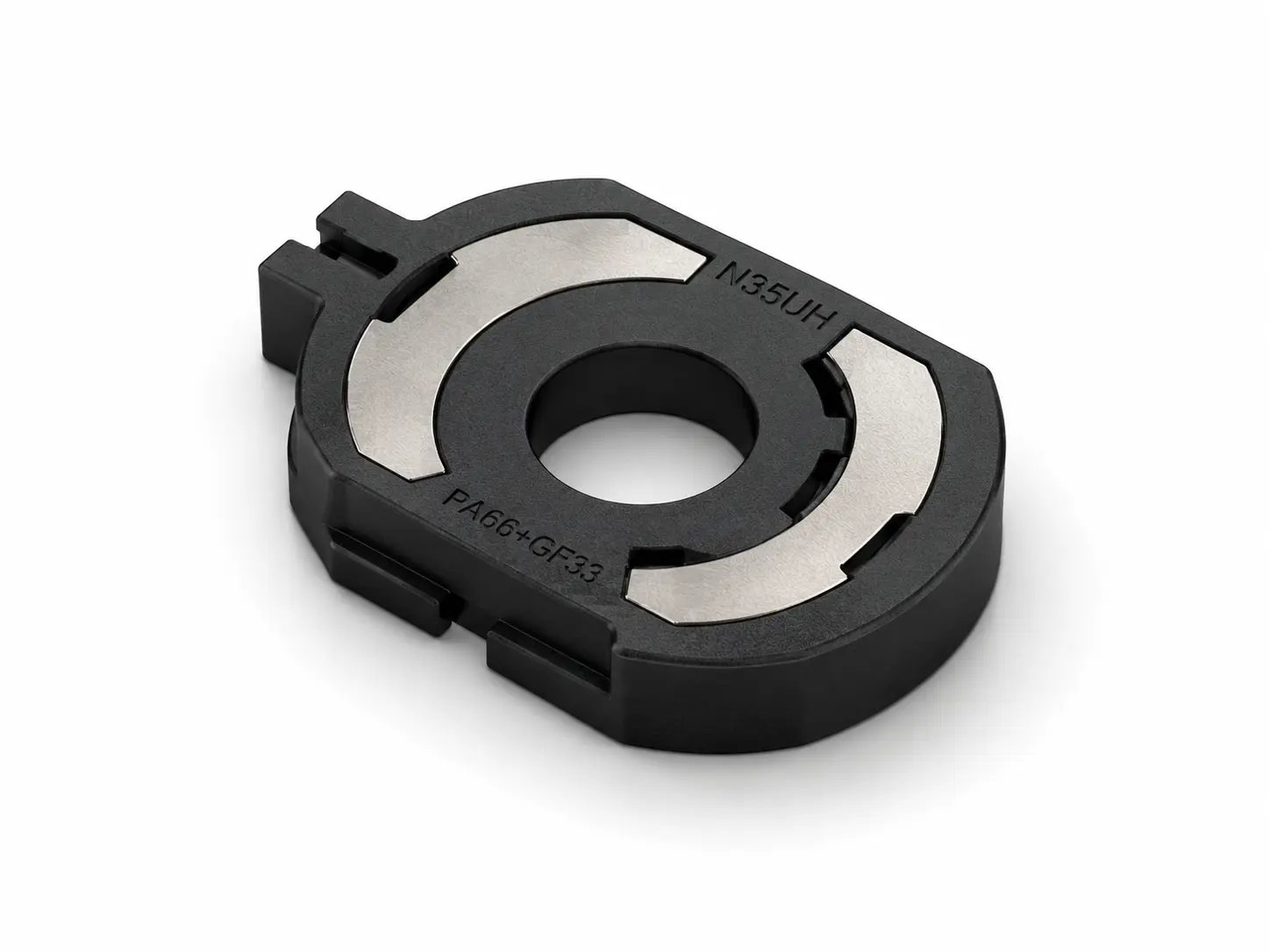

The HS Hardwares Injection Molded Magnetic Assembly is a precision-engineered magnetic component designed to provide a stable and accurate magnetic field source for rotary position sensing applications. The assembly combines a high-temperature N35UH NdFeB magnet with a durable PA66+GF33 glass-fiber reinforced injection-molded housing, ensuring excellent mechanical strength, dimensional stability, and long-term performance.
Developed for automotive, industrial, and motion-control systems, this magnetic assembly generates a consistent magnetic field that enables precise angular position detection when paired with Hall-effect sensors, magnetoresistive sensors, or other rotary sensing technologies.
The injection-molded structure securely encapsulates and positions the magnet, improving assembly accuracy, vibration resistance, and environmental durability. The N35UH magnet grade provides excellent magnetic stability and resistance to demagnetization, even in elevated-temperature operating environments.
HS Hardwares offers complete customization services, including magnetic performance, housing geometry, magnetization patterns, material selection, dimensional tolerances, and sensor integration requirements.
Key Features
- Precision magnetic assembly for rotary position sensing
- High-performance N35UH NdFeB magnet
- Durable PA66+GF33 reinforced engineering plastic housing
- Stable and repeatable magnetic field output
- High-temperature resistance
- Excellent dimensional consistency
- Strong vibration and shock resistance
- Reliable long-term magnetic performance
- Lightweight integrated design
- Suitable for automotive-grade applications
- Injection-molded encapsulation for improved durability
- Full OEM and ODM customization support
Technical Specifications
- Magnet Material: N35UH NdFeB
- Housing Material: PA66 + GF33
- Manufacturing Process: Injection Molding
- Surface Treatment: NiCuNi (Nickel-Copper-Nickel)
- Magnetization Direction: Radial / Customized
- Magnetic Field Strength: Customized according to sensor requirements
- Operating Temperature: Customized according to application requirements
Customization Options
- Magnetic field strength
- Magnet dimensions
- Magnetization patterns
- Injection molded housing design
- Plastic material grades
- Operating temperature requirements
- Sensor matching solutions
- Automotive-grade specifications
- Custom tolerances and assemblies
Applications
- Rotary position sensors
- Automotive steering angle sensors
- Throttle position sensors
- Motor position feedback systems
- Electric power steering (EPS)
- Transmission position sensing
- Industrial automation equipment
- Servo motor control systems
- Robotics position detection
- Intelligent motion-control devices
