Description

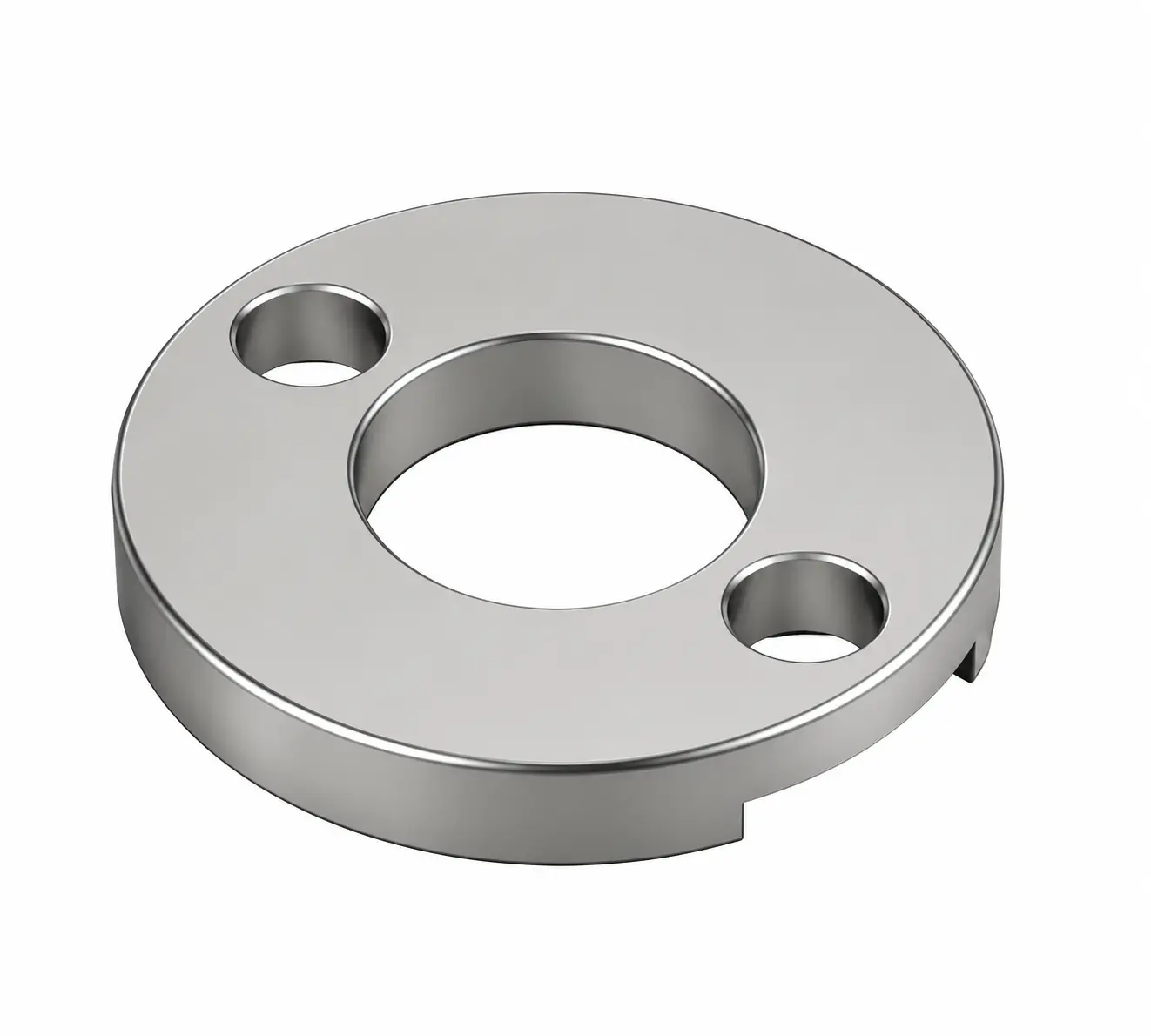

This custom magnetic flange assembly is designed for precision applications requiring reliable magnetic performance, compact construction, and accurate mechanical integration. Manufactured from high-performance NdFeB permanent magnet material, the component combines a circular magnetic structure with a central bore and precision mounting holes for secure installation.
The reference specification indicates an N35 NdFeB magnet with Ni-Cu-Ni coating, providing good corrosion resistance and a durable surface finish for industrial applications. The component features a nominal outer diameter of 36 mm and an overall thickness of approximately 6.2 mm, with additional stepped and mounting features designed according to the application requirements.
Its precision-machined geometry makes it suitable for applications including electric motors, magnetic assemblies, automation equipment, sensors, actuators, and customized electromechanical systems.
As an OEM/ODM magnetic component, the design can be customized according to customer drawings, including dimensions, magnet grade, coating, hole configuration, tolerances, magnetization direction, and assembly requirements.
Key Features
- N35 sintered NdFeB permanent magnet
- Ni-Cu-Ni protective coating
- Approx. Ø36 × 6.2 mm overall specification
- Central bore and precision mounting holes
- Compact flange-style magnetic assembly
- Custom dimensions and configurations available
- Suitable for OEM and ODM applications
- Designed for integration into motors and industrial equipment
Applications
- Electric motors and motor components
- Magnetic sensors and actuators
- Automation equipment
- Industrial machinery
- Electromechanical assemblies
- Customized magnetic systems
Customization Options
We support customized magnetic assemblies based on customer drawings or technical requirements. Magnet grade, dimensions, coating, tolerances, hole patterns, magnetization, and mechanical configuration can be adapted to meet specific application requirements.
