Description

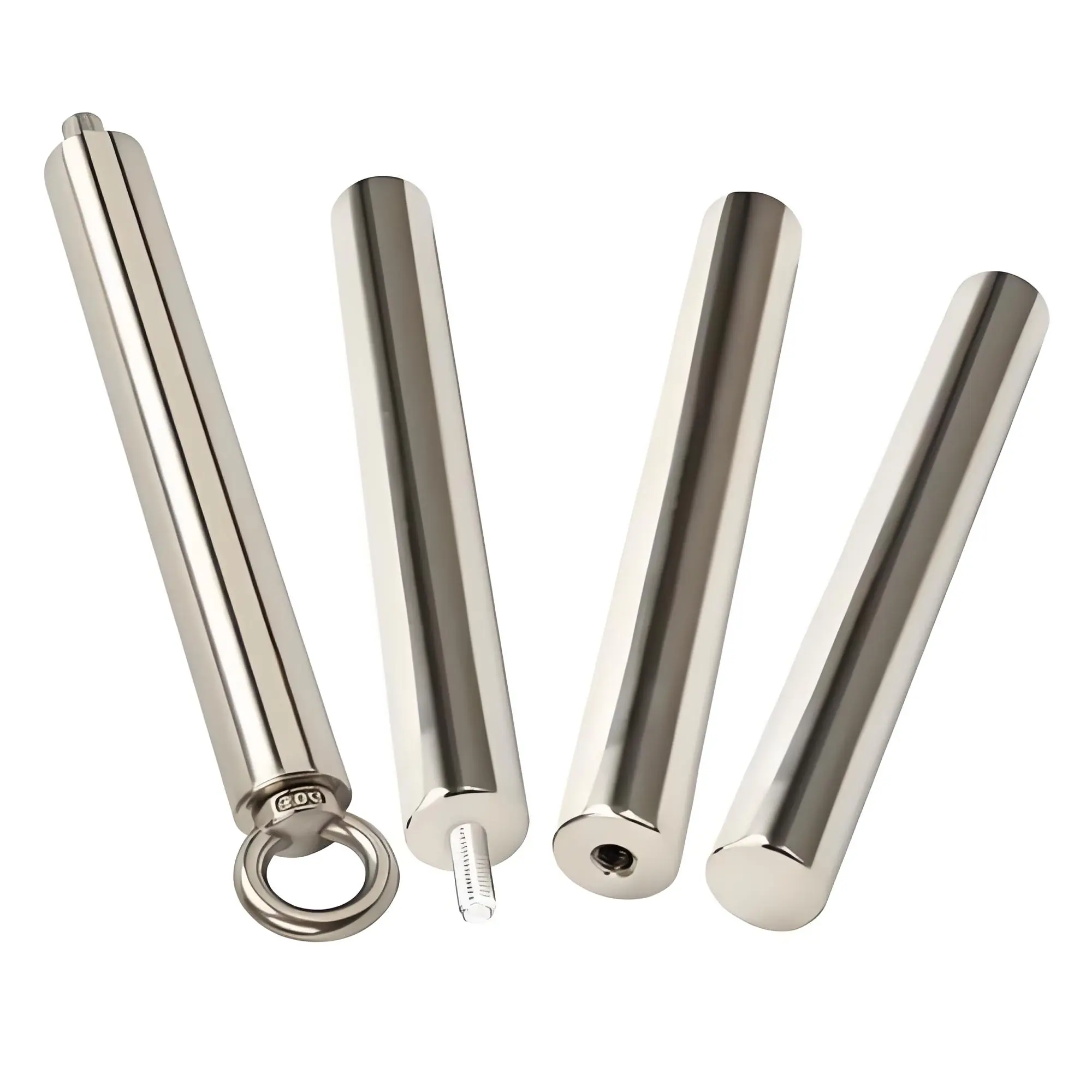

The HS Hardwares 10000–15000 Gauss Magnetic Separator Rod is a high-intensity magnetic filtration component designed for removing ferrous contaminants from powders, granules, liquids, slurries, and bulk materials. Manufactured using high-performance N35 to N54UH NdFeB magnets, this magnetic rod generates a powerful magnetic field capable of capturing fine iron particles and weakly magnetic contaminants, helping improve product purity and protect downstream processing equipment.
Encased in food-grade or industrial-grade stainless steel tubing, the magnetic rod offers excellent corrosion resistance, durability, and long-term magnetic stability. With surface magnetic strengths ranging from 10,000 to 15,000 Gauss, it is widely used in food processing, pharmaceutical manufacturing, chemical production, plastics, recycling, ceramics, mining, and battery material industries.
HS Hardwares provides complete customization services, including rod diameter, length, magnetic strength, end fittings, mounting structures, and surface finish requirements.
Key Features
- Ultra-strong magnetic field strength: 10,000–15,000 Gauss
- High-performance N35–N54UH NdFeB magnets
- Excellent iron contamination removal efficiency
- Suitable for dry and wet processing environments
- Corrosion-resistant stainless steel housing
- High-temperature grades available
- Durable welded construction
- Easy integration into magnetic grids and separators
- Low maintenance operation
- Long service life
- OEM and ODM customization available
Technical Specifications
- Product Type: Magnetic Separator Rod
- Magnetic Material: NdFeB (N35–N54UH)
- Surface Magnetic Strength: 10,000–15,000 Gauss
- Housing Material: SUS304 / SUS316L Stainless Steel
- Surface Finish: Polished Finish
- Operating Temperature: Customized according to magnet grade
- Diameter: Customizable
- Length: Customizable
Customization Options
- Magnetic strength
- Rod diameter
- Rod length
- End thread specifications
- Mounting configurations
- Stainless steel grade
- Surface finish
- High-temperature magnetic materials
- Food-grade processing requirements
- Custom magnetic filtration systems
Applications
- Food processing equipment
- Pharmaceutical manufacturing
- Chemical processing
- Plastic recycling systems
- Powder handling systems
- Ceramic production
- Battery material processing
- Mining and mineral separation
- Grain and feed processing
- Industrial magnetic filtration systems
