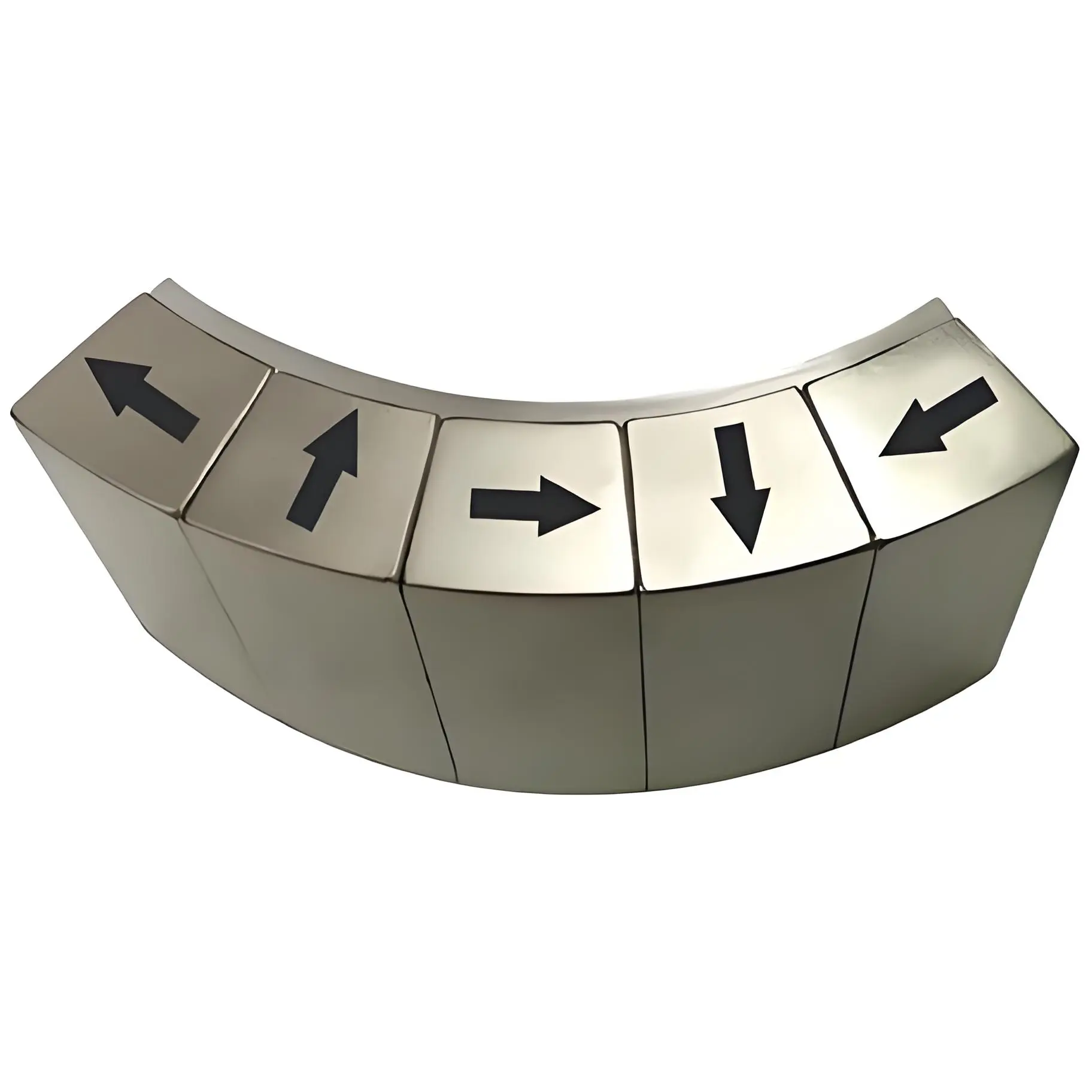

Custom Halbach Array Magnetic Assembly

Custom Halbach Array Magnetic Assembly

HS Hardwares Halbach Array Magnetic Assemblies utilize high-performance N35–N54UH NdFeB magnets to create highly concentrated magnetic fields with minimal leakage. Ideal for frameless torque motors, direct-drive motors, linear motors, magnetic bearings, MRI systems, precision sensors, and advanced industrial applications. Fully customizable for specific performance requirements.

Category:
×

Request a Quote

Please enter your full name.
This field is required.
This field is required.
Specify the product you are inquiring about.
This field is required.
Please provide your inquiry details.
This field is required.

Description

The Halbach Array Magnetic Assembly from HS Hardwares is an advanced magnetic system engineered to maximize magnetic field strength on one side while significantly reducing magnetic flux on the opposite side. Utilizing premium NdFeB magnets from N35 to N54UH, the Halbach array design delivers superior magnetic efficiency, enhanced power density, and optimized performance for demanding industrial and scientific applications.

Through precise magnet orientation and assembly technology, the Halbach array generates a concentrated magnetic field that improves motor efficiency, increases thrust and torque output, and reduces magnetic leakage. This makes it an ideal solution for frameless torque motors, direct-drive motors, linear motors, magnetic bearings, MRI systems, precision sensors, high-end audio equipment, and magnetic coupling systems.

HS Hardwares provides complete customization services, including array geometry, magnetic grade, pole configuration, dimensions, coatings, magnetic field requirements, and integrated assembly solutions.

Key Features

  • Product Type: Halbach Array Magnetic Assembly
  • Magnet Material: NdFeB (Neodymium Iron Boron)
  • Magnet Grades: N35 – N54UH
  • High magnetic field concentration
  • Reduced magnetic leakage
  • Improved energy efficiency
  • Enhanced torque and thrust density
  • Compact and lightweight design
  • High-temperature grades available
  • Precision magnetic field control
  • Excellent long-term stability
  • Fully customizable configurations

Available Customization Options

  • Linear Halbach arrays
  • Circular Halbach arrays
  • Rotor magnetic assemblies
  • Magnetic track assemblies
  • Custom pole counts
  • High-temperature magnet grades
  • Special coatings and encapsulation
  • Precision magnetic field optimization

Applications

  • Frameless torque motors
  • Direct-drive motor rotors
  • Linear motors
  • Magnetic levitation bearings
  • MRI and NMR equipment
  • Precision magnetic sensors
  • High-performance loudspeakers
  • Magnetic couplings
  • Semiconductor equipment
  • Aerospace and scientific instruments
