Customized magnetic assemblies are increasingly important in modern industrial equipment, where standard magnets often cannot meet specific requirements for size, magnetic performance, installation, and operating conditions. By integrating magnets with precision-engineered metal, plastic, or mechanical components, manufacturers can create compact and application-specific solutions that improve both product performance and manufacturing efficiency.
For OEMs in electric motors, automation equipment, automotive systems, medical devices, and other industries, customized magnetic assemblies can provide significant advantages over individual off-the-shelf magnets.
Improved Magnetic Performance
A customized assembly allows engineers to optimize the complete magnetic circuit rather than selecting a magnet independently. Magnet grade, shape, magnetization direction, air gap, pole configuration, and surrounding ferromagnetic components can all be considered during the design process.
Magnetic circuit simulation can also help identify the optimal configuration before production. This approach can improve magnetic flux distribution, holding force, torque, or sensing accuracy while avoiding unnecessary increases in magnet size or material consumption.
Simplified Product Assembly

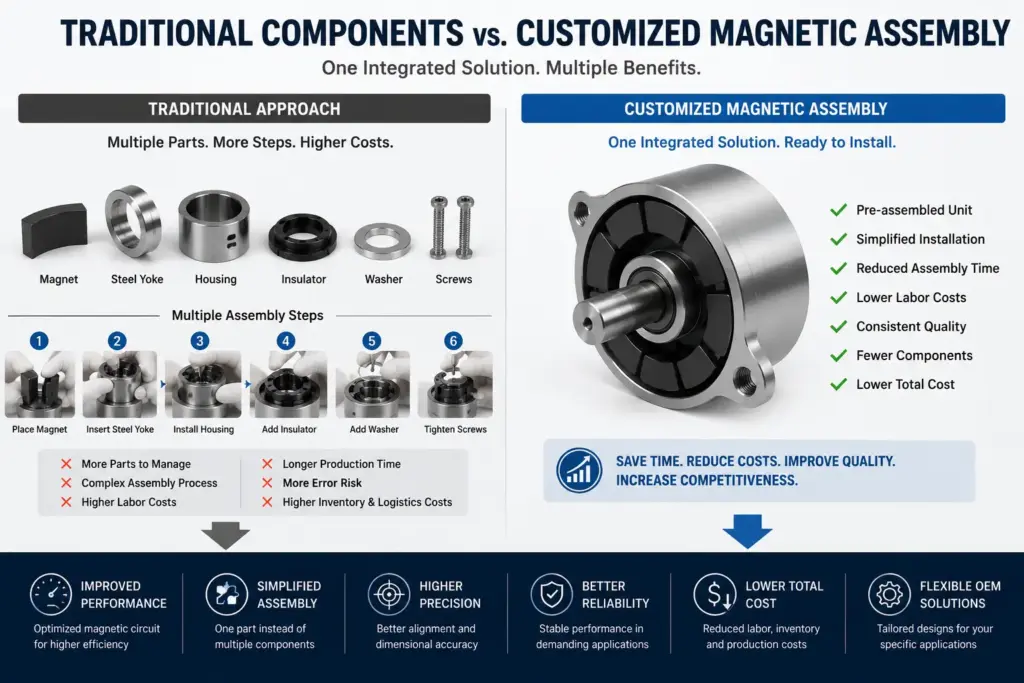

One of the most important benefits of customized magnetic assemblies is reduced assembly complexity. Instead of purchasing magnets, housings, brackets, fasteners, and other components separately, customers can receive a pre-assembled component that is ready for installation.
This can reduce:
- Assembly labor
- Production time
- Number of individual components
- Operator error
- In-house inspection requirements
For high-volume production, even a small reduction in assembly time can generate substantial cost savings over the product lifecycle.
Better Dimensional Accuracy
Industrial magnetic applications often require precise positioning. A small variation in magnet location or air gap can affect the performance of a motor, sensor, actuator, or magnetic coupling.
Customized assemblies are manufactured according to defined engineering drawings and tolerances. Precision machining, stamping, bonding, and assembly processes help maintain consistent dimensions and magnet positioning across production batches.
This improves product repeatability and makes the magnetic assembly easier to integrate into automated production lines.
Optimized Material Selection
Different applications require different combinations of magnetic and structural materials. NdFeB magnets may be preferred when high magnetic energy density is required, while SmCo can be advantageous in high-temperature environments.
The assembly structure can also incorporate stainless steel, carbon steel, aluminum, or other materials depending on mechanical strength, corrosion resistance, weight, and cost requirements.
A customized design allows these materials to be selected as a complete system rather than as isolated components.
Greater Resistance to Harsh Environments
Industrial equipment may operate under high temperatures, vibration, humidity, chemicals, or continuous mechanical loads. Customized magnetic assemblies can incorporate protective coatings, mechanical retention methods, sealing structures, and appropriate material combinations to improve durability.
For example, high-temperature NdFeB or SmCo magnets can be selected for demanding thermal environments, while suitable coatings can provide additional corrosion protection.
Lower Total Cost of Ownership
The lowest component price does not always result in the lowest manufacturing cost. Customized magnetic assemblies can reduce the total cost of ownership by combining several components and manufacturing processes into one optimized solution.
Potential savings include:
- Lower assembly labor
- Reduced component inventory
- Fewer suppliers
- Simplified logistics
- Lower defect rates
- Reduced maintenance requirements
This makes customized assemblies particularly valuable for OEM projects where production volume and long-term reliability are important.
Flexible OEM and ODM Solutions
Every industrial application has different technical requirements. A customized magnetic assembly can be developed around the customer’s existing product architecture rather than forcing the design to accommodate a standard component.
At HS Hardwares, our engineering team supports customers from initial concept and drawing review through material selection, magnetic circuit optimization, prototyping, production, inspection, and delivery.
Our capabilities include NdFeB magnets, SmCo magnets, magnetic assemblies, precision stamping components, CNC machining, and OEM/ODM manufacturing. By integrating these capabilities, we can provide complete magnetic solutions tailored to specific applications.
Conclusion
Customized magnetic assemblies offer more than improved magnetic performance. They can simplify product design, reduce assembly time, improve dimensional consistency, withstand demanding operating environments, and lower total manufacturing costs.
For OEM manufacturers developing motors, automation equipment, automotive components, medical devices, or other precision products, working with an experienced magnetic assembly manufacturer at the design stage can create significant long-term advantages.
HS Hardwares combines magnetic engineering, precision manufacturing, assembly capabilities, and quality control to deliver customized magnetic solutions designed around each customer’s technical and commercial requirements.
