Magnetic couplings are innovative power transmission devices that transfer torque between two shafts without physical contact. By utilizing the attractive and repulsive forces generated by permanent magnets, magnetic couplings provide a reliable, maintenance-friendly, and leak-free alternative to conventional mechanical couplings.
As industries increasingly demand higher efficiency, reduced maintenance, and improved operational safety, magnetic couplings have become an important solution in sectors ranging from chemical processing to medical equipment and renewable energy systems.
What Is a Magnetic Coupling?
A magnetic coupling consists of two magnetic assemblies separated by a containment barrier or air gap. One assembly is connected to the driving shaft, while the other is attached to the driven shaft.
When the driving shaft rotates, the magnetic field generated by the permanent magnets causes the driven assembly to rotate simultaneously, transmitting torque without direct mechanical contact.
This non-contact design eliminates many of the wear-related issues associated with traditional couplings.
How Magnetic Couplings Work

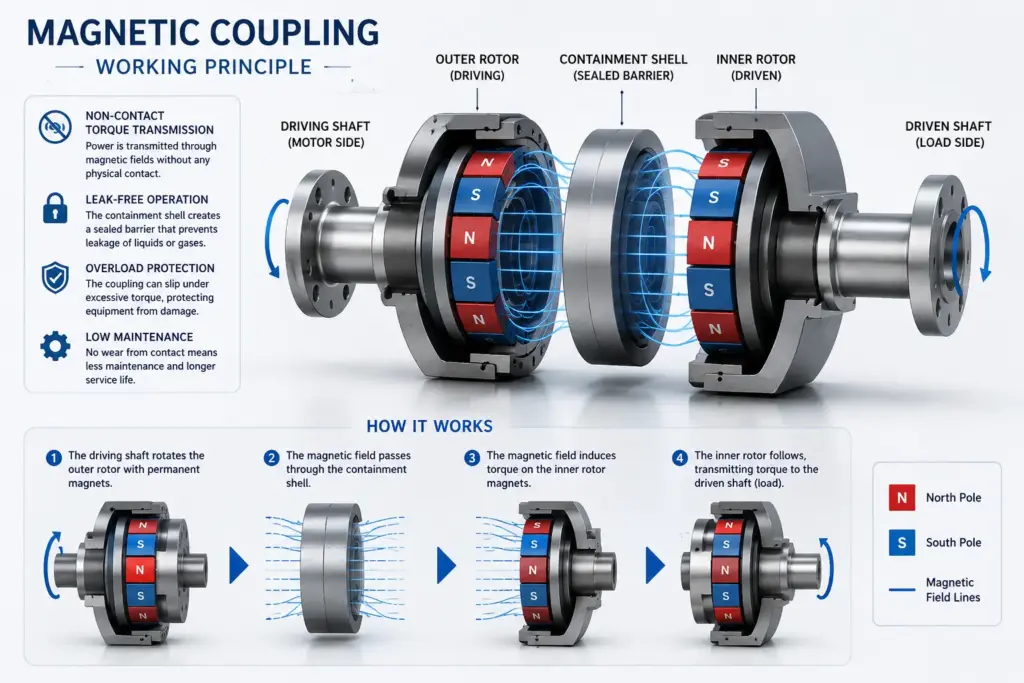

The operating principle of a magnetic coupling is based on magnetic attraction and synchronization.
The outer magnetic rotor is connected to the motor or power source, while the inner rotor is connected to the load. Strong permanent magnets, typically NdFeB or SmCo magnets, are arranged in alternating pole patterns.
As the driving rotor rotates, its magnetic field interacts with the driven rotor, creating synchronized movement and transmitting torque through the containment shell.
Because there is no direct contact between moving parts, magnetic couplings operate with minimal friction and virtually no mechanical wear.
Key Advantages of Magnetic Couplings
Leak-Free Operation
One of the most significant benefits of magnetic couplings is the ability to transmit power through a sealed barrier. This design prevents leakage of liquids, gases, or hazardous chemicals.
Reduced Maintenance
Without physical contact between the driving and driven components, there are no seals, gears, or coupling surfaces subject to wear. This significantly reduces maintenance requirements and downtime.
Overload Protection
If excessive torque is applied, the magnetic coupling can slip without causing damage to the motor or connected equipment, providing an inherent safety feature.
Improved Reliability
The elimination of mechanical wear components increases system reliability and extends equipment service life.
Industrial Applications of Magnetic Couplings
Chemical Processing Equipment

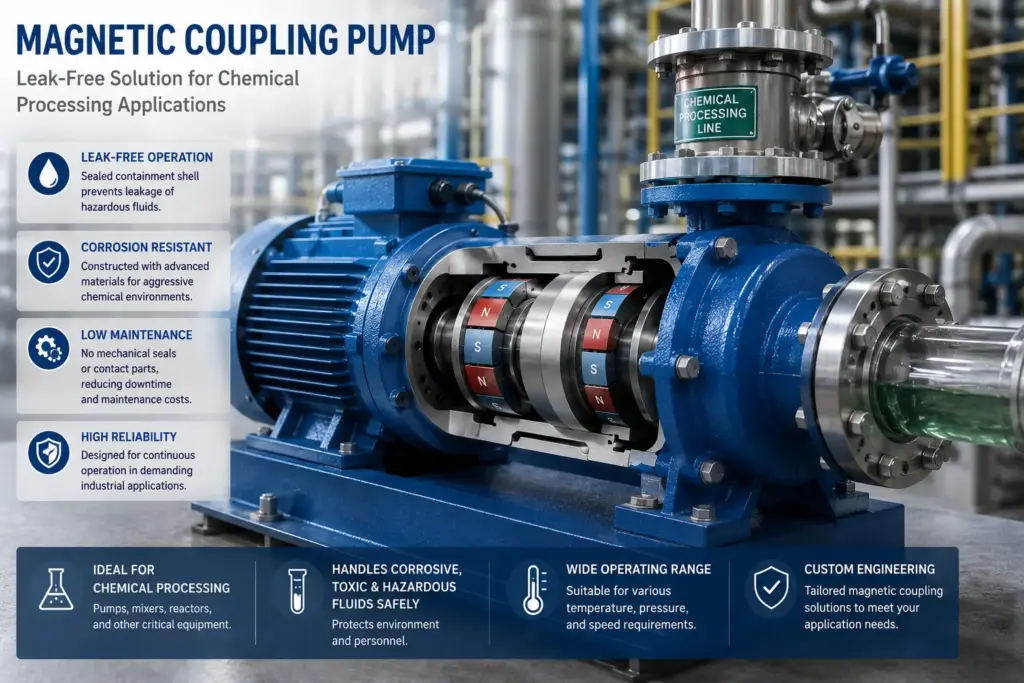

Magnetic couplings are widely used in chemical pumps that handle corrosive, toxic, or hazardous fluids. The sealed design helps maintain process safety while eliminating leakage risks.
Medical and Pharmaceutical Equipment
In medical and pharmaceutical environments, contamination control is critical. Magnetic couplings enable fully sealed systems that support stringent hygiene requirements.
Food and Beverage Processing
Food processing equipment often utilizes magnetic couplings to maintain sanitary conditions and simplify cleaning procedures while ensuring reliable power transmission.
Renewable Energy Systems
Magnetic couplings are increasingly used in wind power, energy storage systems, and specialized generators where low maintenance and high reliability are essential.
Industrial Automation
Automated machinery, conveyors, and robotic systems benefit from the precise torque transmission and overload protection offered by magnetic couplings.
Selecting the Right Magnetic Coupling
Choosing the appropriate magnetic coupling requires evaluating several factors, including torque requirements, operating temperature, rotational speed, environmental conditions, and available installation space.
Material selection is also important. NdFeB magnets provide high magnetic strength, while SmCo magnets offer excellent performance in high-temperature and corrosive environments.
Working with an experienced manufacturer can help ensure optimal coupling design and long-term performance.
Why Choose HS Hardwares?
At HS Hardwares, we design and manufacture custom magnetic assemblies and magnetic coupling solutions for demanding industrial applications. With over 20 years of experience, advanced engineering capabilities, and strict quality control systems, we provide reliable magnetic products tailored to customer requirements.
Our expertise includes NdFeB magnets, SmCo magnets, magnetic assemblies, magnetic motor components, and customized magnetic solutions for a wide range of industries.
Conclusion
Magnetic couplings provide an efficient, reliable, and maintenance-free method of transmitting torque without physical contact. Their leak-free design, overload protection, and long service life make them ideal for chemical processing, medical equipment, food production, renewable energy, and industrial automation systems. As industries continue to seek more efficient and dependable technologies, magnetic couplings will remain a valuable solution for modern engineering applications.
